RFN ARES RALLY
TECHNICAL SPECFICATIONS
90 miles
CITY RANGE
2590Wh
BATTERY
12.5 kw
PEAK POWER
200 mm
SHOCK ABSORBORS
32 lbs
TOP SPEED
50 mph
CURB WEIGHT
Battery
Capacity:43Ah / 2590Wh
Cells:18650 lithium cells
Features: Removable, can be charged when installed in bike or separately.
Voltage (nominal):72V
Drivetrain

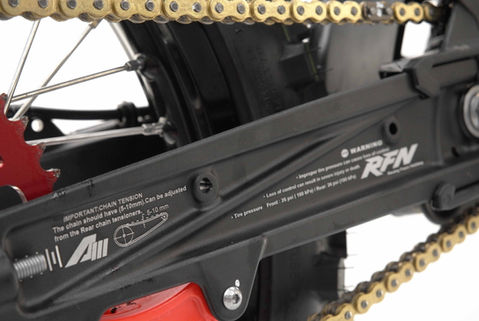

Chain:420 chain with DX
Electric motor:Internal Rotor Permanent Magnet Synchronous Motor
Front sprocket:11 teeth
Nominal power:5.0 kW
Peak power:12.5 kW**
Rear sprocket:58 teeth
Torque (motor axle):69 N·m
Torque (wheel):364 N·m
Type: Direct drive, chain, right side drive
Charging
0-100%: 2-3 hours
0-80%: 1-2 hours
Type: Variable voltage External charger for 100V-240V outlets
Charging Input: Quick charging 5 A @ 220 V (AC)
Charging Power:840 W @ 84 V 10 A (DC)
Ride modes
Ride mode 1:Turtle Mode: 96km @ 45km/h
Ride mode 2:Rabbit Mode: 50km @ 78km/h
Ride mode 3:Rocket Mode: Catapult start mode, peak current 150A, No time limit
Ride mode 4:Reverse mode: Limited to 9 km/h
Dimensions
Fork angle:24°
Ground clearence:320mm – 12.60”
Offset:15mm in triple clamps, 45mm-48mm in forks
Seat height:860mm – 33.86”
Wheel base:1330mm – 52.36”
Frame
Build:6082 aluminium – extruded, forged and iron frame
Rear flat fork6082 forged aluminum alloy – Enhanced Modularity
Seat cushion leather (Vinyl)
Suspension
FRONT SUSPENSION
Travel: 200mm
Type: Upside-down air forks featuring 45mm-48mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper.
REAR SUSPENSION
Travel: 68mm（wheel travel 180mm）/59mm（wheel travel 150mm）
Type:240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable.
Wheels & Tires

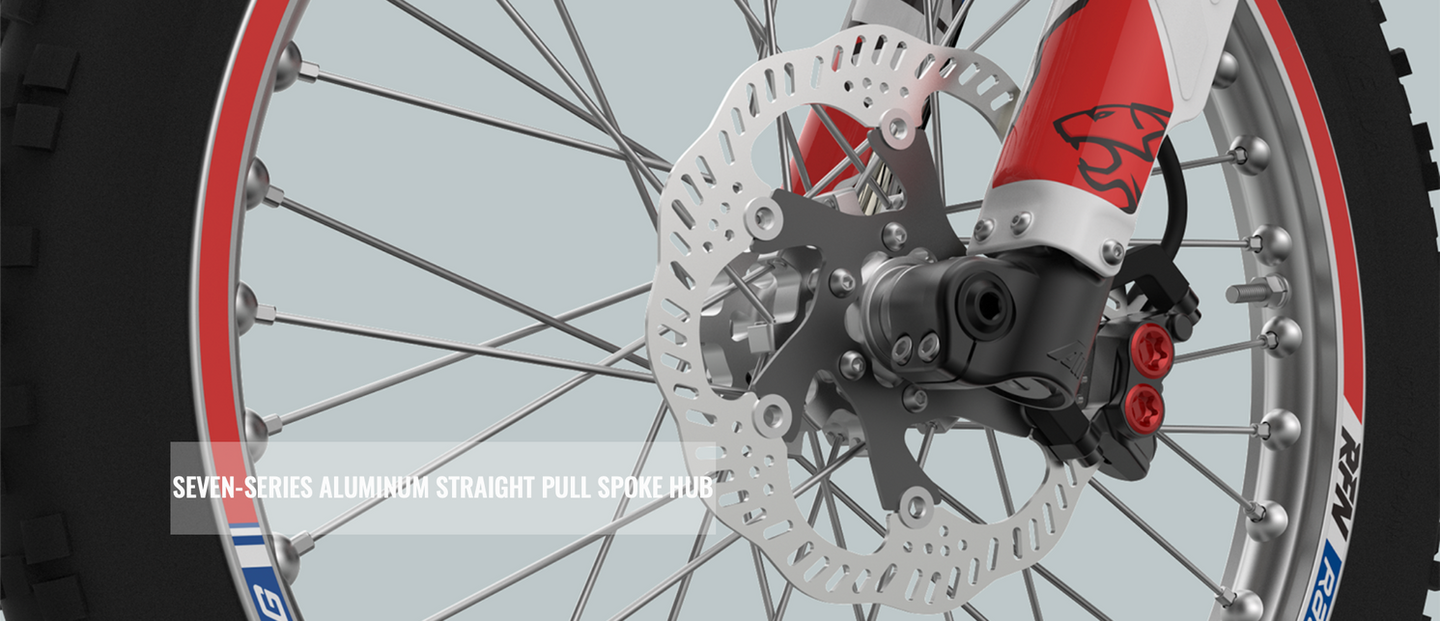

Hubs: Forged and CNC aluminum RFN hubs with 20mm axle
Rims: F 19″/ R 18″ (Motorcycle standard) re-enforced, Straight Pull Spokes, 7116 aluminums
Tires: F: Kenda K783 70/100-19 OFF-ROAD, R: Kenda K783 90/100-OFF-ROAD
GERMAN DESIGN
AWARDS WINNER
Taking the spotlight and receiving an award at the 2023 German Design awards, the RFN ARES RALLY Electric Dirt Bike. Test ride today and see for yourself why this bike is revolutionising the industry.
